Aluminum Fence Angles

Industrial Classic Spear Top Aluminum Fence - curved
Industrial Classic Spear Top Aluminum Fence – curved

We do not fabricate radius fence panels. That’s custom fabrication. However, you can make angles and curved barriers with our straight fence panel sections using one of the following 2 options:

OPTION 1 – Slight Angles, No Mounts needed

Insert/Set horizontal rails of panel(s) into line, corner, end T, or Gate-punched posts. You do not need to purchase mounts when making slight panel-to-post angle connections.

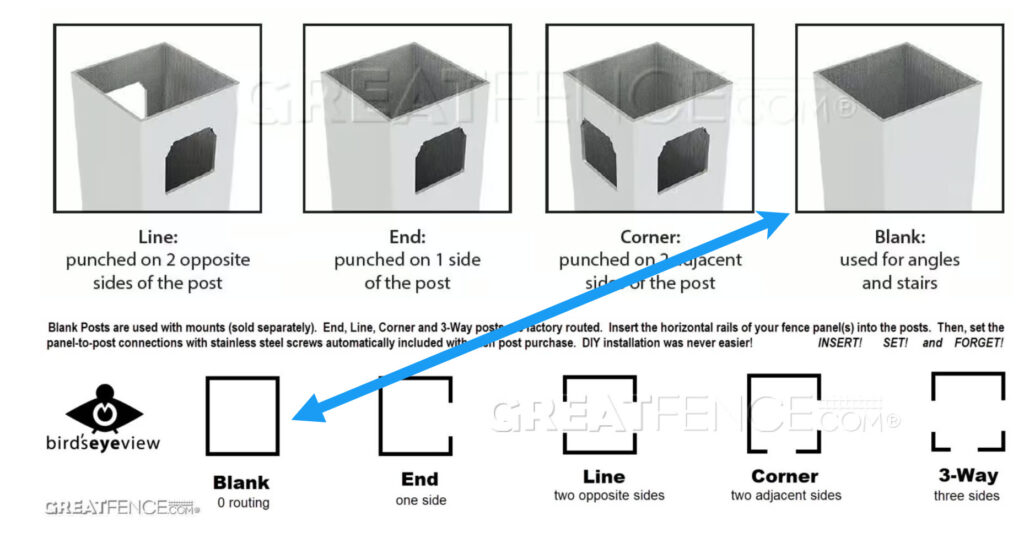

Cad Drawing of Posts
Post Cad Drawing

Insert horizontal rails of fence panel into holes in post.  You can turn the panel left or right up to approximately 8 – 10 degrees before setting the panel to post connection with included self tapping screws.

Here’s a perfect example of line posts used to create slight angles:

10 foot high industrial aluminum fence line posts
10 foot high industrial aluminum fence line posts

OPTION 2 – Hard Angles, Mounts required

25, 35 and 45 degree angles. Mount fence panels to BLANK posts using Horizontal Swivel Mounts for each rail-to-post connection. Mounts sold separately: here

Blank Posts

Swivel Mounts

Mount 2 panels to one post using Horizontal Swivel Mounts which will give you approximately 30 – 35 degrees on each connection.  Connecting 2 panels to one post with 2 sets of horizontal swivel mounts will provide you with any degree angle that you need.

Aluminum Fence Angles - Flat Top Flush Bottom - Style 9
Aluminum Fence Angles – Flat Top Flush Bottom – Style 9
Baseball Field Fence angled
Baseball Field Fence angled
Aluminum Fence Panel Widths & Heights - January 2022
